Welcome to the DUCK Experiment - March_12_2024_painted_black_12_layers_of_scintillator_cosmic_run page
The development and construction of DUCK detector system is supported by NSF LEAPS-MPS Award 2316097
License: Presented materials are licensed under CC BY unless indicated otherwise. More information can be found here
This license enables reusers to distribute, remix, adapt, and build upon the material in any medium or format, so long as attribution is given to the creator. The license allows for commercial use. CC BY includes the following elements: BY: credit must be given to the creator.

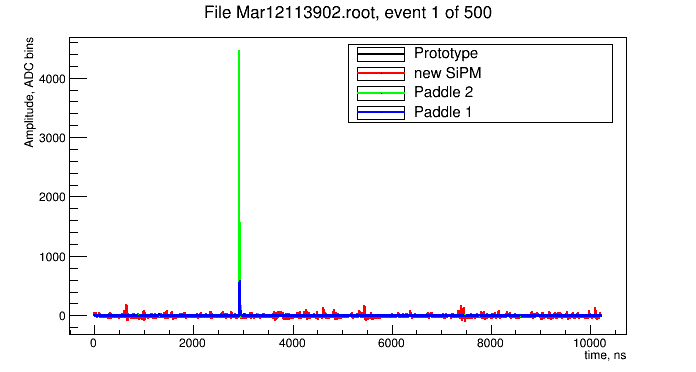

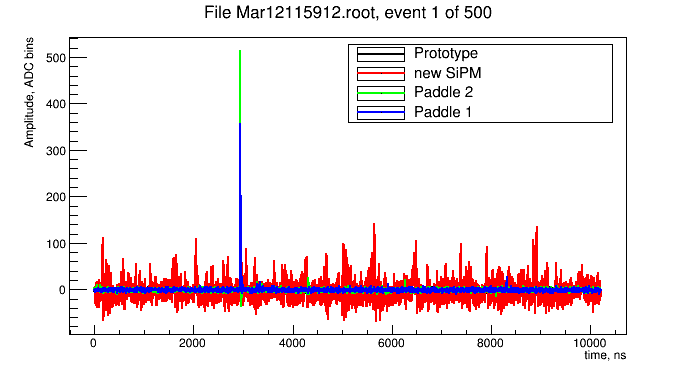

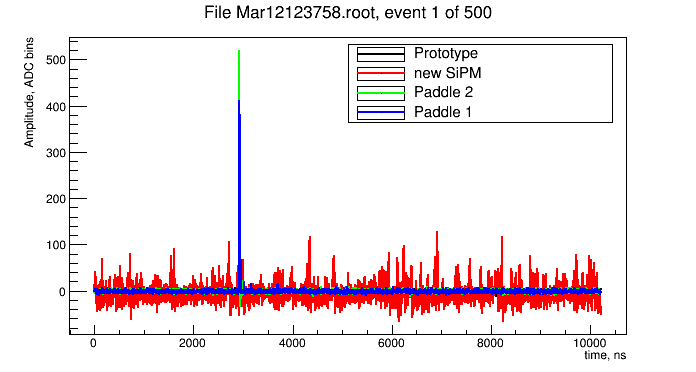

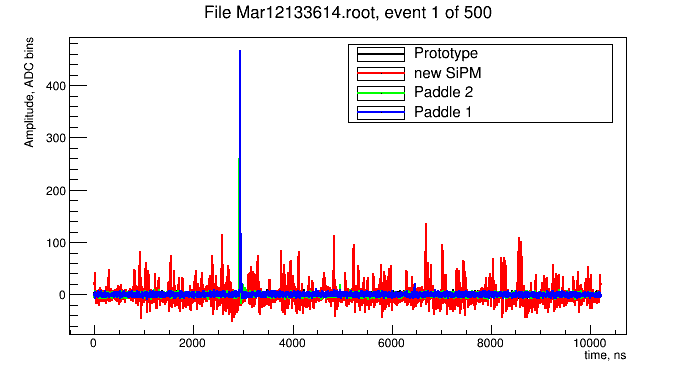

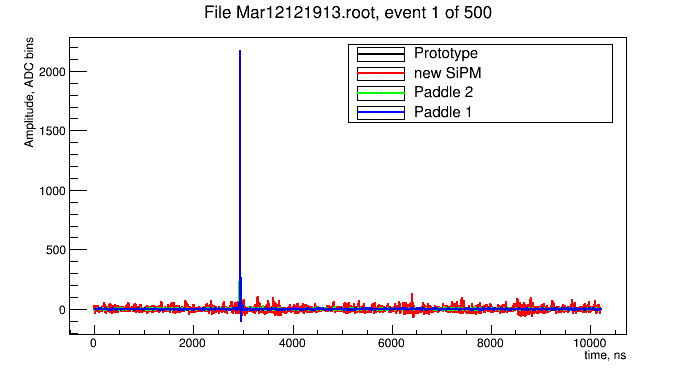

The prototype calibration data run using cosmics from Feb 27 2024. Walls painted black.
12 layers of scintillator, each layer 4mm - total of 48mm
Paddle 1 V=3.43V as read from power supply (*-400 to get actual) connected to ADC3
Paddle 2 V=4.62V connected to AC2
Prototype: 4.82V connected to ADC0
New SiPM at 27.7V connected to ADC1
